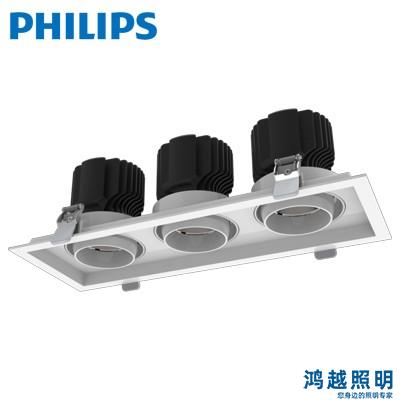

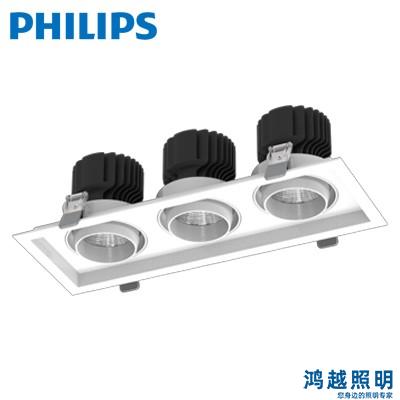

飞利浦LED三头格栅射灯 GD309B 3*P20 950 PSD-E VWB 911401524712

类别： GD309B
室内照明 CRI≥90 R9＞50
三头格栅射灯
应用灵活高照明质量
50000小时寿命
产品描述：飞利浦射灯,飞利浦室内灯具,飞利浦LED三头格栅灯,飞利浦LED射灯,飞利浦工程类射灯,飞利浦高显指高寿命射灯.飞利浦GreenUp Grid三头格栅灯系列采用了专业的光学设计,身材小巧,能更贴合建筑安装条件,占用空间小,适用于大多数天花板;并有多种流明输出,多种色温,可供择.良好的眩光控制能够营造更加舒适的照明环境.
在线询价邮件

飞利浦LED三头格栅射灯 GreenUp Grid GD309B 3*P20 950 PSD-E VWB 911401524712

全新上市飞利浦True Fashion射灯是专为高端零售终端用户(全球、全国)定制的高质量射灯，具有高照明质量、时尚专用光学透镜(FPO)和LED定制光配方。它小巧身材，纤细轨道以及轨道内驱动，与照明系统兼容，具备PSU\DALI-VLC选项，符合多样的店铺设计风格。

产品详情

功率(power) ：3*20W

色温（Color temperature）：5000K

光通量（lumen）：4500lm

光效：75lm/W

光束角：55°

尺寸（Size）：375*140*107mm

开孔尺寸：360*125mm

显色指数（CRI） : ≥ 90Ra

控制方式：DALI 调光

驱动位置：外置驱动

输入电压（AC）:220-240V

安装方式：嵌入式

适用场景

产品特点

参数信息

产品型号	光源类型	12NC	产品型号	光源类型	12NC
GD309B 3*P33 950 PSU-E WB	LED	911401560612	GD309B 3*P33 950 PSU-E VWB	LED	911401560712
GD309B 3*P33 950 PSU-E NB	LED	911401560412	GD309B 3*P33 950 PSU-E MB	LED	911401560512
GD309B 3*P33 950 PSR-E 1-10V WB	LED	911401568612	GD309B 3*P33 950 PSR-E 1-10V VWB	LED	911401568712
GD309B 3*P33 950 PSR-E 1-10V NB	LED	911401568412	GD309B 3*P33 950 PSR-E 1-10V MB	LED	911401568512
GD309B 3*P33 950 PSD-E WB	LED	911401572612	GD309B 3*P33 950 PSD-E VWB	LED	911401572712
GD309B 3*P33 950 PSD-E NB	LED	911401572412	GD309B 3*P33 950 PSD-E MB	LED	911401572512
GD309B 3*P33 940 PSU-E WB	LED	911401560212	GD309B 3*P33 940 PSU-E VWB	LED	911401560312
GD309B 3*P33 940 PSU-E NB	LED	911401560012	GD309B 3*P33 940 PSU-E MB	LED	911401560112
GD309B 3*P33 940 PSR-E 1-10V WB	LED	911401568212	GD309B 3*P33 940 PSR-E 1-10V VWB	LED	911401568312
GD309B 3*P33 940 PSR-E 1-10V NB	LED	911401568012	GD309B 3*P33 940 PSR-E 1-10V MB	LED	911401568112
GD309B 3*P33 940 PSD-E WB	LED	911401572212	GD309B 3*P33 940 PSD-E VWB	LED	911401572312
GD309B 3*P33 940 PSD-E NB	LED	911401572012	GD309B 3*P33 940 PSD-E MB	LED	911401572112
GD309B 3*P33 930 PSU-E WB	LED	911401559412	GD309B 3*P33 930 PSU-E VWB	LED	911401559512
GD309B 3*P33 930 PSU-E NB	LED	911401559212	GD309B 3*P33 930 PSU-E MB	LED	911401559312
GD309B 3*P33 930 PSR-E 1-10V WB	LED	911401567412	GD309B 3*P33 930 PSR-E 1-10V VWB	LED	911401567512
GD309B 3*P33 930 PSR-E 1-10V NB	LED	911401567212	GD309B 3*P33 930 PSR-E 1-10V MB	LED	911401567312
GD309B 3*P33 930 PSD-E WB	LED	911401571412	GD309B 3*P33 930 PSD-E VWB	LED	911401571512
GD309B 3*P33 930 PSD-E NB	LED	911401571212	GD309B 3*P33 930 PSD-E MB	LED	911401571312
GD309B 3*P33 927 PSU-E WB	LED	911401559012	GD309B 3*P33 927 PSU-E VWB	LED	911401559112
GD309B 3*P33 927 PSU-E NB	LED	911401558812	GD309B 3*P33 927 PSU-E MB	LED	911401558912
GD309B 3*P33 927 PSR-E 1-10V WB	LED	911401567012	GD309B 3*P33 927 PSR-E 1-10V VWB	LED	911401567112
GD309B 3*P33 927 PSR-E 1-10V NB	LED	911401566812	GD309B 3*P33 927 PSR-E 1-10V MB	LED	911401566912
GD309B 3*P33 927 PSD-E WB	LED	911401571012	GD309B 3*P33 927 PSD-E VWB	LED	911401571112
GD309B 3*P33 927 PSD-E NB	LED	911401570812	GD309B 3*P33 927 PSD-E MB	LED	911401570912
GD309B 3*P28 950 PSU-E WB	LED	911401544612	GD309B 3*P28 950 PSU-E VWB	LED	911401544712
GD309B 3*P28 950 PSU-E NB	LED	911401544412	GD309B 3*P28 950 PSU-E MB	LED	911401544512
GD309B 3*P28 950 PSR-E 1-10V WB	LED	911401552612	GD309B 3*P28 950 PSR-E 1-10V VWB	LED	911401552712
GD309B 3*P28 950 PSR-E 1-10V NB	LED	911401552412	GD309B 3*P28 950 PSR-E 1-10V MB	LED	911401552512
GD309B 3*P28 950 PSD-E WB	LED	911401556612	GD309B 3*P28 950 PSD-E VWB	LED	911401556712
GD309B 3*P28 950 PSD-E NB	LED	911401556412	GD309B 3*P28 950 PSD-E MB	LED	911401556512
GD309B 3*P28 940 PSU-E WB	LED	911401544212	GD309B 3*P28 940 PSU-E VWB	LED	911401544312
GD309B 3*P28 940 PSU-E NB	LED	911401544012	GD309B 3*P28 940 PSU-E MB	LED	911401544112
GD309B 3*P28 940 PSR-E 1-10V WB	LED	911401552212	GD309B 3*P28 940 PSR-E 1-10V VWB	LED	911401552312
GD309B 3*P28 940 PSR-E 1-10V NB	LED	911401552012	GD309B 3*P28 940 PSR-E 1-10V MB	LED	911401552112
GD309B 3*P28 940 PSD-E WB	LED	911401556212	GD309B 3*P28 940 PSD-E VWB	LED	911401556312
GD309B 3*P28 940 PSD-E NB	LED	911401556012	GD309B 3*P28 940 PSD-E MB	LED	911401556112
GD309B 3*P28 930 PSU-E WB	LED	911401543412	GD309B 3*P28 930 PSU-E VWB	LED	911401543512
GD309B 3*P28 930 PSU-E NB	LED	911401543212	GD309B 3*P28 930 PSU-E MB	LED	911401543312
GD309B 3*P28 930 PSR-E 1-10V WB	LED	911401551412	GD309B 3*P28 930 PSR-E 1-10V VWB	LED	911401551512
GD309B 3*P28 930 PSR-E 1-10V NB	LED	911401551212	GD309B 3*P28 930 PSR-E 1-10V MB	LED	911401551312
GD309B 3*P28 930 PSD-E WB	LED	911401555412	GD309B 3*P28 930 PSD-E VWB	LED	911401555512
GD309B 3*P28 930 PSD-E NB	LED	911401555212	GD309B 3*P28 930 PSD-E MB	LED	911401555312
GD309B 3*P28 927 PSU-E WB	LED	911401543012	GD309B 3*P28 927 PSU-E VWB	LED	911401543112
GD309B 3*P28 927 PSU-E NB	LED	911401542812	GD309B 3*P28 927 PSU-E MB	LED	911401542912
GD309B 3*P28 927 PSR-E 1-10V WB	LED	911401551012	GD309B 3*P28 927 PSR-E 1-10V VWB	LED	911401551112
GD309B 3*P28 927 PSR-E 1-10V NB	LED	911401550812	GD309B 3*P28 927 PSR-E 1-10V MB	LED	911401550912
GD309B 3*P28 927 PSD-E WB	LED	911401555012	GD309B 3*P28 927 PSD-E VWB	LED	911401555112
GD309B 3*P28 927 PSD-E NB	LED	911401554812	GD309B 3*P28 927 PSD-E MB	LED	911401554912
GD309B 3*P24 950 PSU-E WB	LED	911401528612	GD309B 3*P24 950 PSU-E VWB	LED	911401528712
GD309B 3*P24 950 PSU-E NB	LED	911401528412	GD309B 3*P24 950 PSU-E MB	LED	911401528512
GD309B 3*P24 950 PSR-E 1-10V WB	LED	911401536612	GD309B 3*P24 950 PSR-E 1-10V VWB	LED	911401536712
GD309B 3*P24 950 PSR-E 1-10V NB	LED	911401536412	GD309B 3*P24 950 PSR-E 1-10V MB	LED	911401536512
GD309B 3*P24 950 PSD-E WB	LED	911401540612	GD309B 3*P24 950 PSD-E VWB	LED	911401540712
GD309B 3*P24 950 PSD-E NB	LED	911401540412	GD309B 3*P24 950 PSD-E MB	LED	911401540512
GD309B 3*P24 940 PSU-E WB	LED	911401528212	GD309B 3*P24 940 PSU-E VWB	LED	911401528312
GD309B 3*P24 940 PSU-E NB	LED	911401528012	GD309B 3*P24 940 PSU-E MB	LED	911401528112
GD309B 3*P24 940 PSR-E 1-10V WB	LED	911401536212	GD309B 3*P24 940 PSR-E 1-10V VWB	LED	911401536312
GD309B 3*P24 940 PSR-E 1-10V NB	LED	911401536012	GD309B 3*P24 940 PSR-E 1-10V MB	LED	911401536112
GD309B 3*P24 940 PSD-E WB	LED	911401540212	GD309B 3*P24 940 PSD-E VWB	LED	911401540312
GD309B 3*P24 940 PSD-E NB	LED	911401540012	GD309B 3*P24 940 PSD-E MB	LED	911401540112
GD309B 3*P24 930 PSU-E WB	LED	911401527412	GD309B 3*P24 930 PSU-E VWB	LED	911401527512
GD309B 3*P24 930 PSU-E NB	LED	911401527212	GD309B 3*P24 930 PSU-E MB	LED	911401527312
GD309B 3*P24 930 PSR-E 1-10V WB	LED	911401535412	GD309B 3*P24 930 PSR-E 1-10V VWB	LED	911401535512
GD309B 3*P24 930 PSR-E 1-10V NB	LED	911401535212	GD309B 3*P24 930 PSR-E 1-10V MB	LED	911401535312
GD309B 3*P24 930 PSD-E WB	LED	911401539412	GD309B 3*P24 930 PSD-E VWB	LED	911401539512
GD309B 3*P24 930 PSD-E NB	LED	911401539212	GD309B 3*P24 930 PSD-E MB	LED	911401539312
GD309B 3*P24 927 PSU-E WB	LED	911401527012	GD309B 3*P24 927 PSU-E VWB	LED	911401527112
GD309B 3*P24 927 PSU-E NB	LED	911401526812	GD309B 3*P24 927 PSU-E MB	LED	911401526912
GD309B 3*P24 927 PSR-E 1-10V WB	LED	911401535012	GD309B 3*P24 927 PSR-E 1-10V VWB	LED	911401535112
GD309B 3*P24 927 PSR-E 1-10V NB	LED	911401534812	GD309B 3*P24 927 PSR-E 1-10V MB	LED	911401534912
GD309B 3*P24 927 PSD-E WB	LED	911401539012	GD309B 3*P24 927 PSD-E VWB	LED	911401539112
GD309B 3*P24 927 PSD-E NB	LED	911401538812	GD309B 3*P24 927 PSD-E MB	LED	911401538912
GD309B 3*P20 950 PSU-E WB	LED	911401512612	GD309B 3*P20 950 PSU-E VWB	LED	911401512712
GD309B 3*P20 950 PSU-E NB	LED	911401512412	GD309B 3*P20 950 PSU-E MB	LED	911401512512
GD309B 3*P20 950 PSR-E 1-10V WB	LED	911401520612	GD309B 3*P20 950 PSR-E 1-10V VWB	LED	911401520712
GD309B 3*P20 950 PSR-E 1-10V NB	LED	911401520412	GD309B 3*P20 950 PSR-E 1-10V MB	LED	911401520512
GD309B 3*P20 950 PSD-E WB	LED	911401524612	GD309B 3*P20 950 PSD-E VWB	LED	911401524712
GD309B 3*P20 950 PSD-E NB	LED	911401524412	GD309B 3*P20 950 PSD-E MB	LED	911401524512
GD309B 3*P20 940 PSU-E WB	LED	911401512212	GD309B 3*P20 940 PSU-E VWB	LED	911401512312
GD309B 3*P20 940 PSU-E NB	LED	911401512012	GD309B 3*P20 940 PSU-E MB	LED	911401512112
GD309B 3*P20 940 PSR-E 1-10V WB	LED	911401520212	GD309B 3*P20 940 PSR-E 1-10V VWB	LED	911401520312
GD309B 3*P20 940 PSR-E 1-10V NB	LED	911401520012	GD309B 3*P20 940 PSR-E 1-10V MB	LED	911401520112
GD309B 3*P20 940 PSD-E WB	LED	911401524212	GD309B 3*P20 940 PSD-E VWB	LED	911401524312
GD309B 3*P20 940 PSD-E NB	LED	911401524012	GD309B 3*P20 940 PSD-E MB	LED	911401524112
GD309B 3*P20 930 PSU-E WB	LED	911401511412	GD309B 3*P20 930 PSU-E VWB	LED	911401511512
GD309B 3*P20 930 PSU-E NB	LED	911401511212	GD309B 3*P20 930 PSU-E MB	LED	911401511312
GD309B 3*P20 930 PSR-E 1-10V WB	LED	911401519412	GD309B 3*P20 930 PSR-E 1-10V VWB	LED	911401519512
GD309B 3*P20 930 PSR-E 1-10V NB	LED	911401519212	GD309B 3*P20 930 PSR-E 1-10V MB	LED	911401519312
GD309B 3*P20 930 PSD-E WB	LED	911401523412	GD309B 3*P20 930 PSD-E VWB	LED	911401523512
GD309B 3*P20 930 PSD-E NB	LED	911401523212	GD309B 3*P20 930 PSD-E MB	LED	911401523312
GD309B 3*P20 927 PSU-E WB	LED	911401511012	GD309B 3*P20 927 PSU-E VWB	LED	911401511112
GD309B 3*P20 927 PSU-E NB	LED	911401510812	GD309B 3*P20 927 PSU-E MB	LED	911401510912
GD309B 3*P20 927 PSR-E 1-10V WB	LED	911401519012	GD309B 3*P20 927 PSR-E 1-10V VWB	LED	911401519112
GD309B 3*P20 927 PSR-E 1-10V NB	LED	911401518812	GD309B 3*P20 927 PSR-E 1-10V MB	LED	911401518912
GD309B 3*P20 927 PSD-E WB	LED	911401523012	GD309B 3*P20 927 PSD-E VWB	LED	911401523112
GD309B 3*P20 927 PSD-E NB	LED	911401522812	GD309B 3*P20 927 PSD-E MB	LED	911401522912
